Metal Detector | Innotec Solutions | Security Products

Walk Through Metal Detector - Innotec Solutions

A metal detector is an electronic instrument which detects the presence of metal nearby. Metal detectors are useful for finding metal inclusions hidden within objects, or metal objects buried underground. They often consist of a handheld unit with a sensor probe which can be swept over the ground or other objects. If the sensor comes near a piece of metal this is indicated by a changing tone in earphones, or a needle moving on an indicator. Usually the device gives some indication of distance; the closer the metal is, the higher the tone in the earphone or the higher the needle goes. Another common type are stationary "walk through" metal detectors used for security screening at access points in prisons, courthouses, and airports to detect concealed metal weapons on a person's body.

Our logistics processes, services, tools and systems in combination with strategic CCTV Security camera locations help you to meet your security needs and achieve security with much more accuracy. Moreover, our project engineers are experienced in applying security solutions to large scale buildings and properties.

Whether it is the one time installation you need done, or whether you are looking for professional and long-term asset management or tech support requirements, we can assure you of the best services at the most economical pricing. Our sales and logistics consultants are always available to help you with any further and detailed queries you might have regarding our services and security solutions.

Featured Client

Infineum Manufacturing Plant Singapore

Infineum is a world leader in the formulation, manufacturing and marketing of petroleum additives for lubricants and fuels.

Established in January 1999, Infineum is a joint venture of two of the most respected names in lubricants and fuels, ExxonMobil and Shell. We number among our customers many of the world’s most recognised consumer brands. The three cornerstones of our approach to conducting business are:
•Close collaboration with oil marketers and original equipment manufacturers
•Technology excellence in proprietary formulations
•Supply reliability

Innotec provides an end-to-end solution surveillance solution which includes:
•Installation of more than 300 CCTV cameras
•Future-Proof fiber optics backbone for camera
•Ultra high clarity high definition IP cameras
•Installation of more than 150 Access Controls

Featured Products

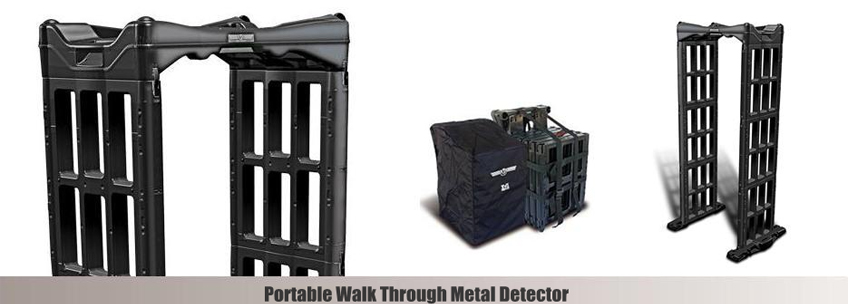

Portable Walk Through Security Metal Detector

Walk-through metal detector provides portable and permanent security solutions worldwide. For your unique security needs, the portable walk-through metal detector offers intelligent, dynamic and an effective portable security solution with features and options unavailable in many permanent walk-through metal detectors.

Police departments worldwide have used the walk-through metal detectors for random screening on streets or in train stations. Other typical customers include schools and courts who need the specifications found in more expensive detectors. Night clubs and bars select the M-Scope because it is quick to put up in the evening and take down in the morning. The walk-through metal detectors is used to secure numerous government and military buildings, especially for applications where additional security must be rapidly deployed. The walk-through metal detector is user-friendly and simple to operate. We have reduced training time requirements while boosting "split cognition"- that is creating a system so reliable that operators are freed up to monitor the activity around them- performing vital crowd-scanning functions instead of having their attention monopolized by running the metal detector unit. The walk-through metal detectors's digital I/O, secured access control panel has been designed for intuitive ease-of-use and has a built-in self-diagnostic function that will notify operators immediately if there is a situation requiring attention. The multi-zone portable walk-through metal detector features 100 sensitivity settings- giving users an unprecedented array of responsive and variable security detector options.

Key Features

1. Intelligent: User friendly control panel with programmable memory
• Universal Power Adaptor/Charger (Adaptor kit available for non USA receptacles)
• Environmentally sealed keypad with security access control
• Brilliant LED Bar Graph Indicates Target Strength
• Lighted LED Displays M-Scope Configuration
• Memory Feature Stores Settings for Multiple Operating Environments
• Multi-Mode Traffic Counter
• Adjustable Volume Control
2. Dynamic: Single person portability
• Assemble without tools – in less than 5 minutes
• Weight: 83lbs (40kg) approximately
3. Effective:
Head-to-Toe, Zone Specific Detection
• 3 sensor zones with brilliant LED detection indicators
100 levels of adjustable sensitivity
• Designed to meet your level of need


• Indoor or outdoor use (not in inclement weather)
• Battery operated (includes AC adapter & recharge kit)
• Operates approximately 40 hours on rechargeable batteries, included
• Multiple units may work within close proximity to one another

Technical Specifications

Environmental design specifications: Temp: -20 °C ~ 55 °C
Relative Humidity 95% non condensing
Power: AC (110V or 220V) or DC

Dimensions & Weight

Portable Dimensions: 37 x 23 x 26” (.94 x .61 x .66 m)
Weight: 83 pounds (37.65 kilos) - can be transported in a car or van

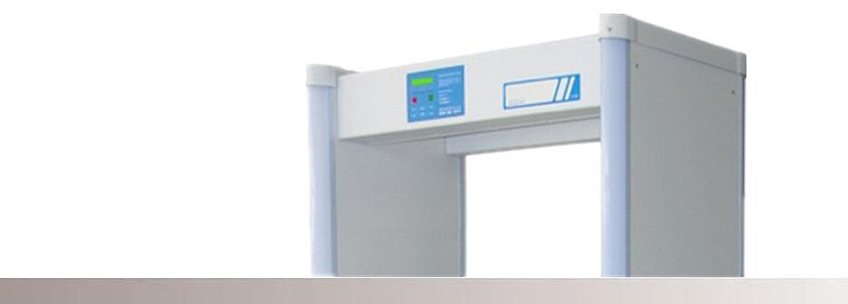

Walk Through Security Metal Detector

Applying most advanced digital detecting technology in the world, security metal detecting gate is for the detection of metal and alloy articles concealed in human body.
Most stable performance with wider screen coil panel and DSP interference programming.
It offers superior performance for demanding high security applications. Superior detection and discrimination utilizing an intelligent six zones architecture, it offers top-class performance in metal detection and unbeatable detection uniformity for metal threat objects regard less of their shape and orientation. This is achieved with an overlapping new multi-zone coil system, which combines the unique true multi-zone features with frequency distribution technology.
The operating frequency distribution eliminates electromagnetic interference present at installation environments today. Together with effective digital signal processing it offers excellent interference immunity. This walk through metal detector can detect multiple threat objects independently indifferent zones. Due to six independent detection zones, signals from distributed harmless objects do not combine to produce unnecessary alarms. In addition, independent detection zones enable free sensitivity adjustment of each zone.

Maximize throughput

This walk through metal detector is equipped with two integrated zone displays. These identify the level(s) at which detected object(s) are carried. The zone displays enable security personnel to immediately target metal objects and ensure that maximum throughput can be maintained. In addition, it is equipped with traffic lights (green and red) indicating when the passenger can pass through the gate.

Easy to install, simple to operate

The display unit can be mounted on all four sides of the detector. This improves flexibility in installation and when operating the unit. In addition, the display unit has LED bars showing the zone display indication. This increases the visibility of the zone display information. All parameters are set through a bi-directional remote control unit that enables the copying of the parameters from one unit to other units.

This control unit, unique only to our brand products, makes programming several detectors fast and easy. The menu structure of the walk through metal detector resembles mobile phones user interface and is therefore familiar to many users. Help texts in the menu further facilitate the operations. The user interface has three user levels: operator, user and superuser. This walk through metal detector has a memory bank, which enables storing customer specific parameter settings.


This walk-through metal detector includes preset weapon specific detection programs to meet the requirements set by internationally recognized authorities. When developing new detection programs we use electromagnetic responses from real guns and knives, and thereby the programs reflect real-life threats. It also incorporates an advanced random alarm function, which enables discreet search of non-alarming passengers.

Enhanced security

To guarantee tamperproof and continuous operation, the switches, cables and connectors are built-in, and the remote control unit can be locked inside the crosspiece. The remote control unit operation is secured with passwords and a code hopping encryption algorithm to prevent unauthorized access. Statistics Intelligent traffic and alarms counters calculate the traffic flow and resultant alarms. The counters both increment and decrement, thereby giving a true traffic count.

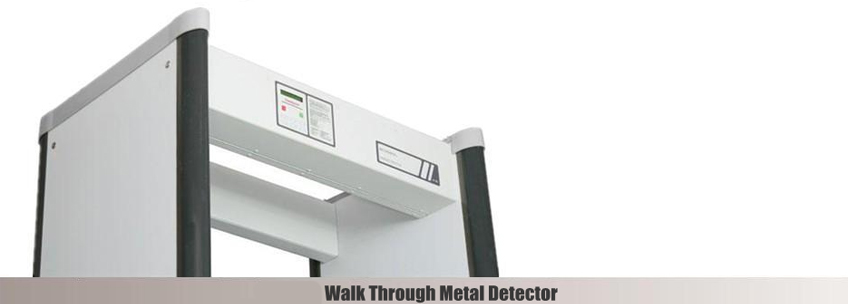

Walk Through Security Metal Detector

Key Features

1. Detection zones: 33 Pinpoint Zones to precisely identify multiple target locations from head to toe and pinpoint the location f metal object on 11 sections LED bar graphs on the frames edges.
2. Coil design: Advanced Broadband Detection Technology provides superior target analysis, ferrous and non-ferrous weapons detection, discrimination and higher patron throughput.
3. Alarm indication: High visible LCD Display, alarm lights, connections and electronics are integrated into a single lockable overhead compartment which eliminates exposure of wires and external control box.
4. Multiple scanning: The ProCheck3 uses multi-dimensional scanning which ensures maximum throughput and uniform screening with a minimum of false alarms. Multiple coil circuitry with dual alarm lights inform operators on which side of the detector the target is located. With “hot spots” eliminated, the unit’s detection field is uniform throughout the archway and false alarms are significantly minimized
5. Microprocessor Controlled: State of the art microprocessors ensure sensitivity and flexibility of programming with a maximum of 100 distinct sensitivity levels in each program.
6. Audible/Visual Alarms: Audible alarm with 10 alarm delay indicating target on 6 independent zones
7. Detection Field: Unique coil design offers multidimensional detection field with total uniformity both horizontally and vertically. This design, plus a choice of three levels of ankle level boost, eliminates traditional hot spots and weak signals. Target detection is precise regardless of its location in the archway.
8. Programming: It offers 3*11 independent zones with 1 to 99 levels (200 level is available for request) of sensitivity adjusting to meet exactly the end users requirement.
9. Interference Suppression: Advanced analog and digital filtering—as well as adjustable operating frequencies—eliminate the potential effects from x-ray units, radios and other electrical interference sources.
10. Traffic counter: Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.


Hand-Held Metal Detector

Both audible and silent vibrating alarm options and extended battery life.

Key Features

1. Ultimate sensitivity: detects medium sized pistol from 9" distance; large knife from 6"; razor blades and box cutters from 3" distance; foil-wrapped drugs and tiny jewelry from 1".
2. Self-calibrating: digital microprocessor technology eliminates the need for periodic sensitivity adjustments.
3. Rugged, high-impact ABS case with reinforced coil compartment.
4. Large 8" scan surface for quick, thorough scanning.
5. No tools required to change standard 9V battery (included). Optional rechargeable battery kit available.
6. Sharp audible alarm and bright red LED indicates the detection of metal.
7. Momentary push button helps temporarily eliminate detection of nearby ambient metal such as rebar, metal walls.
8. Three-color LED indication:
Green LED indicates ON;
Amber LED indicates LOW BATTERY;
Red LED indicates ALARM.;
9. Operating temperatures: -35° F (-37° C) to 158° F (70° C)。

Technical Specifications

Operating Temperatures: -35º F (-37º C) to 158º F (70º C)
Humidity: To 95% non-condensing
Audio Frequency: 2kHz
Tuning: Automatic
Indicators: Speaker LED Alert Lights
Green: Power ON
Amber: Battery LOW
Red: ALARM condition
Controls: Power switch (Audible / Off / Silent)
Battery: Single 9 volt battery provides up to 100 hours of normal operation. Optional NiMH rechargeable battery provides up to 45 hours on a single charge.

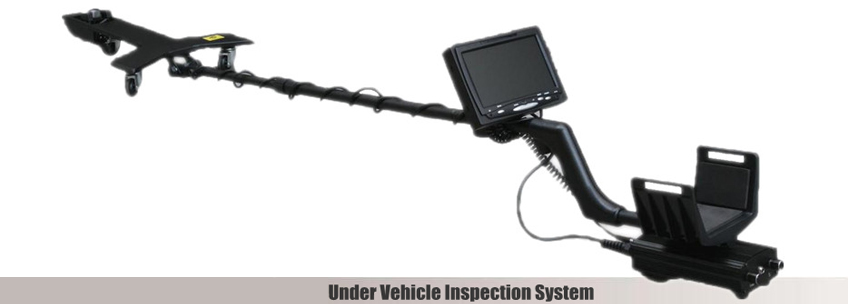

Under Vehicle Inspection System

The portable Under Vehicle Inspection Camera is a video camera designed for security professionals to inspect the undercarriage of vehicles. The system was created to provide a method to quickly and easily visualize the entire underside of a vehicle. The system incorporates a high-resolution color video camera with a fully integrated illumination system to provide clear views under day and night lighting conditions.

Operational flexibility is maximized by the detachable color LCD video display.

The system can be used with the display attached for efficient one hand operation allowing the officer to cover his weapon in high-risk searches. With the display detached, the operator is free to move the display to increase comfort or optimize viewing.

Operators also can choose the accessory carry type monitor mount with closer view of video hand free.

1/4 SONY CCD Color Camera.
90 degree motor tilting move and stop controllable
Wide screen 7″ LCD Detachable Display (Video record function on GTR model)
2*3W super bright controllable LED Illumination
Waterproof Camera and lighting pods
Long reach search trolley and economic design hand grip part
Low noise and smooth caster wheel for smooth control
Lightweight Probe (2.2Kg) with Display
11.7V 5000mAh capacity Li technology rechargeable batteries with Minimum
six hrs stand by condition.
Stored in a waterproof ABS case.

Get professional consultation on security solutions
