CCTV Surveillance Systems - Ultimo HD

CCTV equipment may be used to observe parts of a process from a central control room, for example when the environment is not suitable for humans. CCTV systems may operate continuously or only as required to monitor a particular event. A more advanced form of CCTV, utilizing digital video recorders, (DVRs), provides recording for possibly many years, with a variety of quality and performance options and extra features (such as motion detection and email alerts). More recently, decentralized IP cameras, some equipped with megapixel sensors, support recording directly to network-attached storage devices, or internal flash for completely stand-alone operation. Surveillance of the public using CCTV is particularly common in many areas around the world.

Our logistics processes, services, tools and systems in combination with strategic CCTV Security camera locations help you to meet your security needs and achieve security with much more accuracy. Moreover, our project engineers are experienced in applying security solutions to large scale buildings and properties.

Whether it is the one time installation you need done, or whether you are looking for professional and long-term asset management or tech support requirements, we can assure you of the best services at the most economical pricing. Our sales and logistics consultants are always available to help you with any further and detailed queries you might have regarding our services and security solutions.

Featured Brand

cctv security surveillance camera system security solutions supplier brand ultimo HD singapore

UltimoHD CCTV Surveillance Security Systems

Featured Client

cctv_security_surveillance_camera_system_security_solutions_clients_bollore_sdv_logistics

Bollore Logistics Singapore

Bolloré Logistics is a global leader in international transport & logistics. Constantly adapting to its customers' changing needs, the company has enriched its expertise to become a tier-one supply chain partner and one of the top 10 transport and logistics companies in the world. Innotec provided end-to-end solutions for this company which include:

•Installation of more than 500 CCTV Cameras
•Turnstiles at lobby entrances
•Perimeter fencing around premises
•Installation of access controls at 88 entry points

Featured Product


Smart IP Solution 2.0

This amazing and intelligent solution has enriched Smart features, and consists of many innovative, industry-leading IP products. The Smart Solution 2.0 solution is also the ideal choice for various vertical applications.


Enriched Smart Features

Smart IP Solution 2.0 includes Smart features such as object counting, region entering, region leaving, object removing, object leaving, target cropping stream and ANPR (customization required).

Industry-Leading IP Products

New UltimoHD IP cameras have been incorporated into this solution, including the DarkFighter series, LightFighter series, 6MP Ultra HD series, 4K series, and new 3MP WDR series, with industry-leading product performance.

Versatile Solutions

Smart IPC and Smart NVRs with Smart features are the perfect solution for small and mid-sized applications. For mid-sized to large-sized applications, iVMS-5200 Professional software further improves the system's effectiveness with Smart features and analytics.

Tailored to Vertical Applications

As an all-in-one Smart platform to manage cameras, NVRs, alarms, access control and decoders, the Smart Solution 2.0 is loaded, with Smart features and analytics such as people counting, heating mapping, LPR, and more. This makes it highly adaptable to verticals’ special requirements and can be used in retail, banking, hotel and industrial applications, among others.

Enriched Smart Features

Target Cropping Stream

The third stream of video can be sent to a different source for recording or display in a pre-defined resolution, thus providing more details of a targeted area if needed.




Object Counting

You can designate an area of interest and let the camera count objects entering or leaving, which include not only humans but also vehicles. It also offers statistical reports.

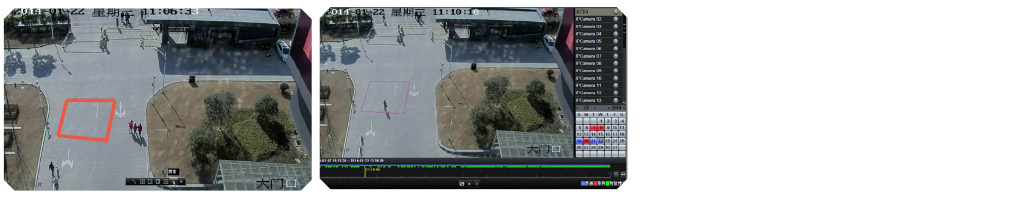

Region Enter / Exit

This function detects people, vehicles or other objects that enter or exit from a pre-defined virtual region, triggering an alarm.

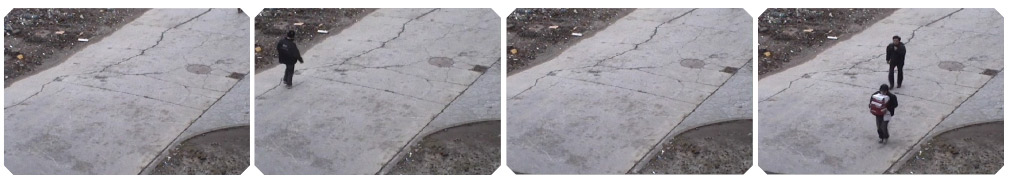

Object Left Behind / Object Removed

This function detects objects left or removed from a pre-defined region, the alarm is triggered.

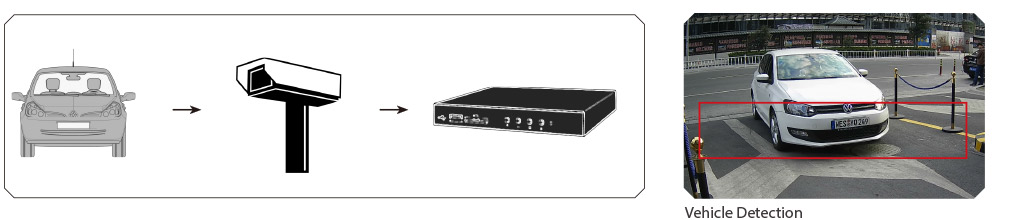

ANPR

On-board ANPR analytics allow the ability to detect and recognize a vehicle’s license plate and send ANPR info to a Smart NVR or iVMS-5200P for access management. Supports may vary based on local LPR algorithm development and customization process required.

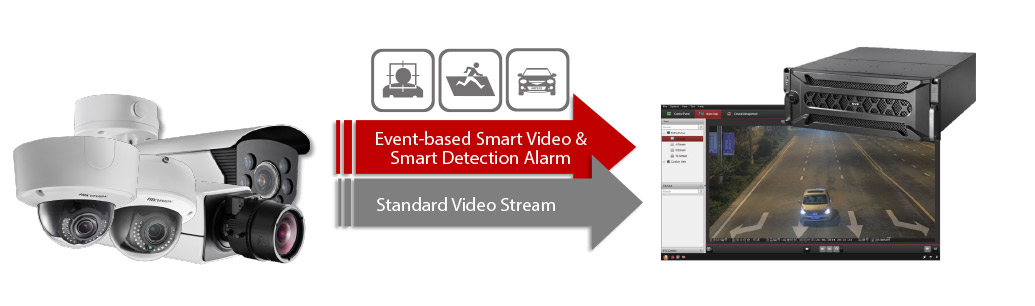

How it works

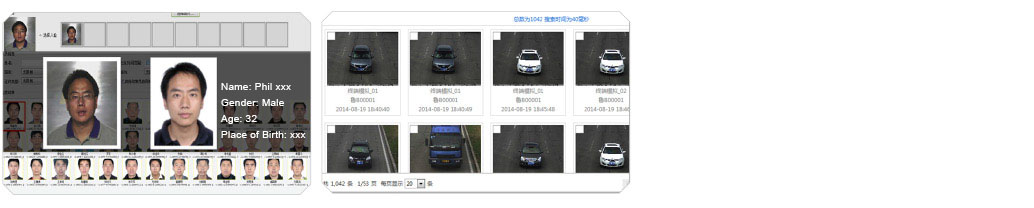

Smart Search: quick retrieval of the camera’s Smart content, such as ANPR or facial recognition.


Smart Playback: playback important events in normal speed, otherwise footage will play in 16x quick view.


Smart Backup: only store event-based video to maximize storage.


Highlighted Technology


1. Smart Codec


H.264+ optimized compression: An efficient way to benefit manage super high resolution video footage

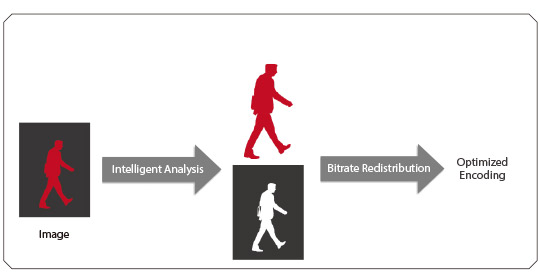

Analytic + Compression The moving target is extracted from the static background, using a different codec for each element.

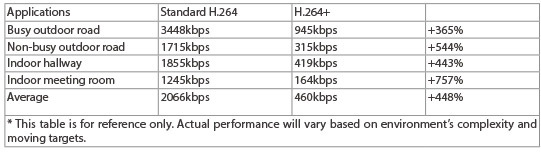

Hikvision H.264+ Smart Codec In a static nighttime environment, the bitrate of H.264+ can reach up to 50~60Kbps, 10~20x over standard H.264 codec, that not only saves bandwidth rresources, but efficiently decreases storage requirements.

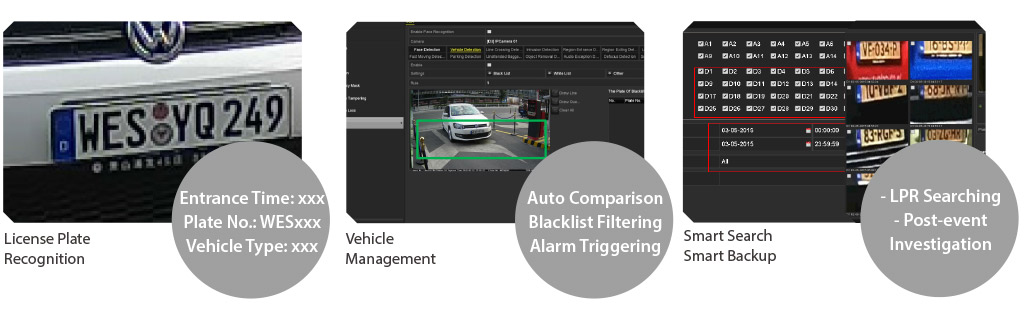

2. ANPR Module


The perfect solution for your entrance management.

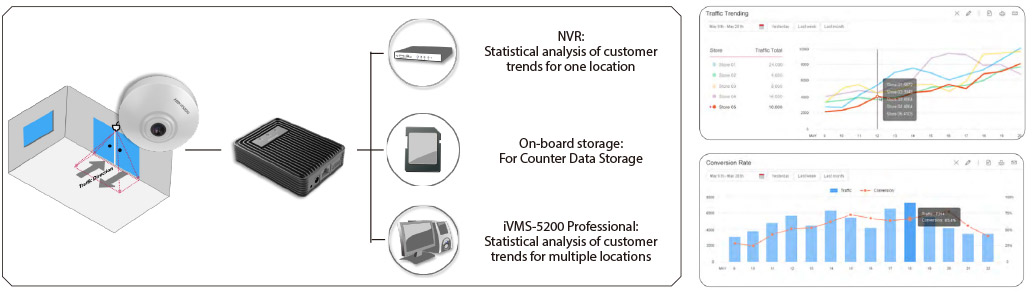

3. People Counting Module


Boosts productivity as well as security.




CCTV Surveillance Products from UltimoHD

cctv_security_surveillance_camera_system_ultimohd_8mp_network_bullet_camera
8 MP Network Bullet Camera

• Up to 8 megapixel high resolution
• Max. 3840 × 2160@20fps
• 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
• H.265, H.265+, H.264+, H.264
•120dB Wide Dynamic Range
• 3D Digital Noise Reduction
• DC12V & PoE (802.3af)
• IR range: 50 m, 80m, optional
• Support on-board storage, up to 128 GB
• IP67

cctv_security_surveillance_camera_system_ultimohd_8mp_network_turret_camera
8 MP Network Turret Camera

• Up to 8 megapixel high resolution
• Max. 3840 × 2160@20fps
• 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
• H.265, H.265+, H.264+, H.264
•120dB Wide Dynamic Range
• 3D Digital Noise Reduction
• DC12V & PoE (802.3af)
• IR range: up to 30m
• Support on-board storage, up to 128 GB
• IP67

cctv_security_surveillance_camera_system_ultimohd_4mp_wdr_mini_pt_network_camera
4MP WDR Mini PT Network Camera

•Up to 4 megapixel (2688x1520) high resolution
•Full HD1080p video
•Dual stream
•120dB Wide Dynamic Range
•Pan & tilt rotation
•Support on-board storage, up to 128GB
•DC12V & PoE
•Support H.264+
•Up to 10m IR range
•-S: Audio/Alarm IO
•-W: Built-in Wi-Fi

cctv_security_surveillance_camera_system_ultimohd_4mp_fisheye
4MP Compact Fisheye Network Camera

•1/3” Progressive Scan CMOS
•Up to 4 megapixel resolution
•Fisheye & PTZ view
•3D DNR
•-I: IR range approx. 8 meters
•-W: Support Wi-Fi, support WPS configuration with one touch
•-S: audio & alarm I/O
•Support 128G on-board storage
•12 VDC ± 10% / PoE

cctv_security_surveillance_camera_system_ultimohd_12mp_fisheye
12MP Fisheye Network Camera

•1/1.7” Progressive Scan CMOS
•Support Heat Map
••12 megapixel image sensor
•Up to 4000 × 3072 resolution
••Multiple viewing modes
•Line crossing and intrusion detection
•Ceiling, wall or table mount modes
•Up to 15m IR range
•360° view angle
•Built-in microphone & speaker
•Audio/Alarm IO/ RS485(-S model)
•IP66(-V model)
•IK10 vandal proof(-V model)

cctv_security_surveillance_camera_system_ultimohd_2mp_wdr_pinhole_covert_secret
2MP WDR Pinhole Covert Network Camera

•1/2.7’’ progressive scan CMOS •Up to 2MP resolution •120dB WDR •ROI codec •Onboard storage, up to 128GB •Triple video streams •Audio/Alarm IO

cctv_security_surveillance_camera_system_ultimohd_2mp_panoramic_360_view
2MP Panoramic Camera

• 1/1.9" Progressive Scan CMOS
• 360° view angle
• Up to 2 × 2400 × 3840@25fps
• Ultra-low illumination
• 3D Operation
• 36VDC power supply
• IP66

cctv_security_surveillance_camera_system_ultimohd_4mp_panoramic_360_view_ptz
PanoVu series 360°Panoramic+PTZ Camera

• 1/1.9" Progressive Scan CMOS
• 360° view angle
• Up to 2 × 4096 × 1800@30fps
• 36X Optical Zoom
• Ultra-low illumination
• WDR
• 3D intelligent positioning function
• IP66

cctv_security_surveillance_camera_system_ultimohd_4mp_expolosion_proof_bullet
4 MP Explosion-Proof Network Bullet Camera

• 1/3” Progressive Scan CMOS
• 2560 × 1440 @25fps frame rate
• Housing material: Stainless steel 304 and 316L optional
• 120dB WDR
• 3D DNR
• Up to 30m IR range
• Support H.265+/H.265/H.264+/H.264
• Support 128G on-board storage
• AC100V to 240V/PoE

cctv_security_surveillance_camera_system_ultimohd_2mp_expolosion_proof_dome
2MP Explosion-Proof Network Speed Dome

• 1/1.9’’ progressive scan CMOS
• Up to 1920 × 1080 resolution,23X Optical zoom
• 120dB WDR, 3D DNR
• IP68
• 304L stainless steel anti-corrosion materials design
• Explosion-Proof Certificate No.:TÜ V 16 ATEX 7950X, IECEx TUR 16.0050X

cctv_security_surveillance_camera_system_ultimohd_4mp_smart_ir_ptz
4K Smart IR PTZ Camera

• 1/1.9” HD CMOS sensor
• 4K 8MP(4096*2160)
• 36X Optical Zoom
• Smart Tracking
• Smart Detection
• 200m IR distance
• Optional wiper(-W)
• Hi-PoE / 24VAC power supply

cctv_security_surveillance_camera_system_ultimohd_4k_laser_smart_ir_ptz
4K Laser Smart PTZ Camera

• 1/1.9” HD CMOS sensor
• 4K 8MP(4096*2160)
• 36X Optical Zoom
• Smart Tracking
• Smart Detection
• 500m IR distance
• Optional wiper(-W)
• Hi-PoE / 24VAC power supply

UltimoHD Network Video Recorder

cctv_security_surveillance_camera_system_ultimohd_new_super_4k_nvr
New Super 4K NVR

• Third-party network cameras supported
• Up to 12 Megapixels resolution recording
• Video outputs at up to 4K (4096*2160) resolution
•Supports decoding up to 20 channels at 1080P resolution
• Up to 128/256 IP cameras can be connected with
512M/768M incoming bandwidth
• Up to 24 SATA interfaces
• Supports H.264+,H.264,MPEG4,H.265,MJPEG video format
• Support redundant power supply to improve the system stability • Support HDD hot swap with RAID0,1,5,6,10 storage
scheme configurable •Support various VCA detection alarm and VCA search

cctv_security_surveillance_camera_system_ultimohd_embedded_4k_nvr
Embedded 4K NVR

• Third-party network cameras supported
• Up to 12 Megapixels resolution recording
• Support 2-ch HDMI, 2-ch VGA, HMDI1 at up to 4K(3840x2160) resolution
• Up to 64 IP cameras can be connected with 320M incoming bandwidth
• Up to 16 SATA interfaces
• Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
•Support various VCA detection alarm and VCA search
•Support H.265/H.264/MPEG4 video formats

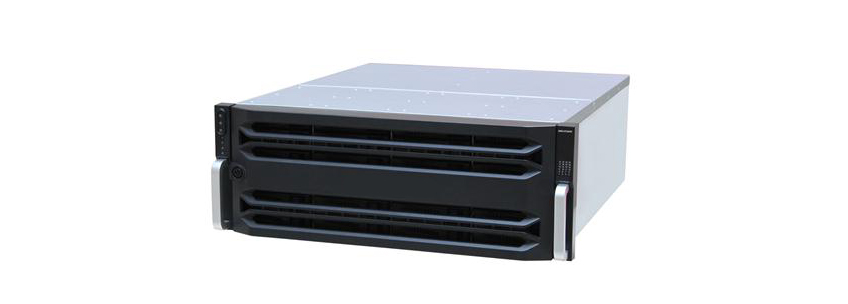

[NEW!] UltimoHD 448-Ch (Recording + Playback) Network Storage

Reliable System


•Modular and no-cable design.
•Dual controller.
•Real-time cache.
•Optional BBU (Backup Battery Unit).

High-Performance and Extendable Hardware Platform


•64-bit multi-core processor.
•SBB 2.0 structure.
•PCI-E 2.0 bus.
•SAS 2.0 high-speed transmission channel.
•Four 1000M Ethernet interfaces per controller.
•SAS interface for storage enclosure.
•High-density chassis. 2U chassis: 12 HDDs. 4U chassis: 24 HDDs.

HDD Detection and Repair/RAID Optimization


•Detection before operation.
•Detection in operation.
•Fault repair.
•RAID 0, 1, 3, 5, 6, 10, 50.
•Global and local hot spare.
•Supports building RAID with surveillance-class HDD.
•Quick RAID building.
•Capability of cascading up to two storage enclosures behind a single SAS port.
