Product Overview

This Software is designed and developed in Singapore

Innotec Thermal Fever Detection System Solution is an innovation to identify people who have a fever. With such a disease outbreak, these devices quickly scan all people who passed by for elevated temperatures. These devices are mostly used in airports to scan passengers to prevent outbreaks such as SARS, Bird Flu, Ebola and other recent outbreak such as Coronavirus also known as the Wuhan virus. This can be used in childcare, malls, schools, airports, etc.

quarantine

What is "Wuhan" Coronavirus (MERS-COV)?

Coronaviruses are a group of viruses in mammals and birds which cause diseases. The virus causes respiratory infections in humans that are usually moderate, like a common cold, but can be fatal in rarer types such as SARS and MERS. These can cause diarrhea in cows and pigs, whereas it may cause an upper respiratory disease in chickens. Neither vaccines or antiviral medicines are approved for prevention or treatment.

Most coronaviruses spread the same way other cold-causing viruses do: through coughing and sneezing from infected people, by touching the hands or face of an infected person, or by touching objects like doorknobs that infected people have touched.

Symptoms of Coronavirus

The symptoms of most coronaviruses, including runny nose, coughing, sore throat, and sometimes fever, are similar to any other upper respiratory infections.

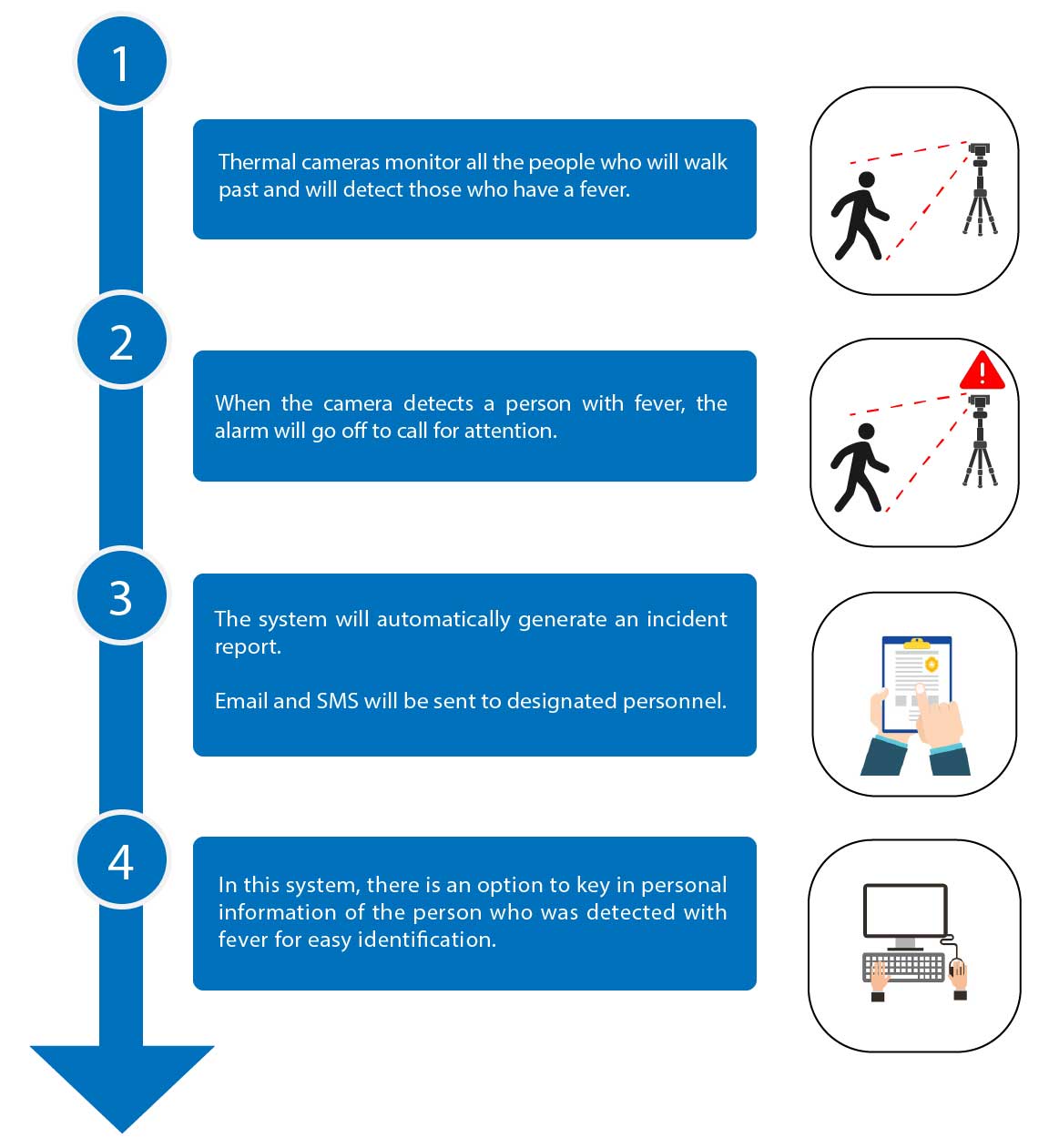

How it works?

Integrated with IMP (Intelligent Management Platform) which automatically sends a report when the device is triggered and alert designated personnel.

fever detection how it works

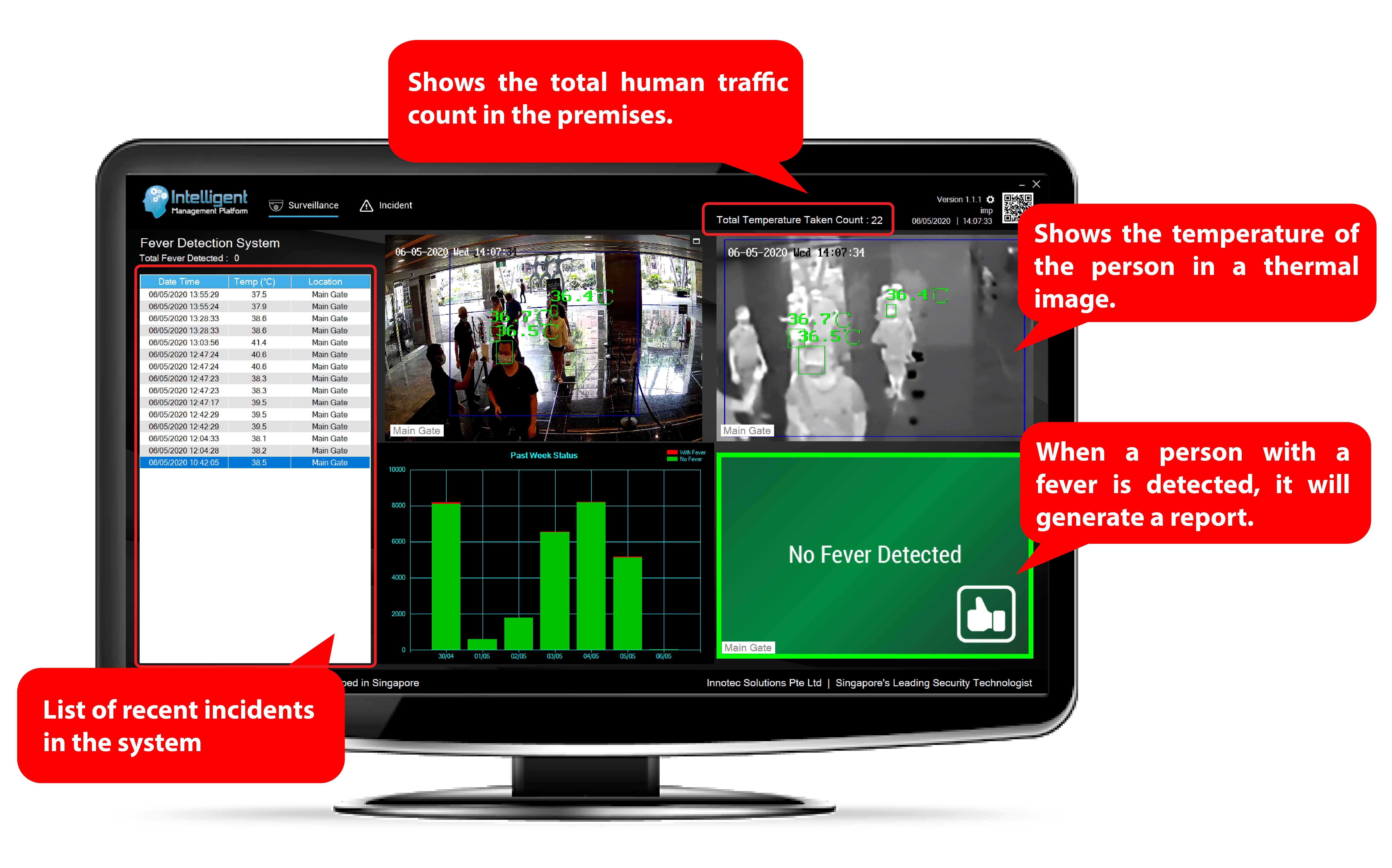

Software GUI

Fever Scanner

*The picture above shows the GUI of the software

Thermal Fever Detection Camera

Thermal Fever Detection Camera equipped with an integrated GPU that supports a smart behavioral analysis algorithm can perform high-precision VCA detection and real-time warning. Not only is a fever detection, it also applied to indoor fire prevention purposes, such as engine room, ATM, conference room, factory, museum, train station, gem, power station, etc. The pre-alarm system helps you quickly discover unwanted accidents and protect your assets.

Functions

  • Image processing technology
  • Temperature exception alarm function
  • Bi-spectrum image fusion, picture in picture preview
  • Strobe light and audio alarm
  • High sensitivity sensor
  • 3D DNR, 15 palettes of color adjustable, image detail enhancement and contrast adjustment
  • Mirror image, digital zoom
thermal image

Face Detection

The camera will target a human head and not hot objects, for example, hot coffee to ensure that only fever is detected and will give more accurate fever detection readings.

face detection

High-speed Multiple Detection

The camera has a high-speed ability to read multiple human temperatures, in this way no queues required for our system as it is fast and has an accuracy of +-0.5 degrees celsius. It will automatically detect and alert the user when a fever is detected.

High Speed multiple fever detection

Specification

Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 160 × 120 (the resolution of output image is 320 × 240)
Pixel Interval 17 μm
Response Waveband 8 μm to 14 μm
NETD Less than 40 mK (25°C), F# = 1.1
Lens (Focal Length) 3.1 mm
IFOV 5.48 mrad
Field of View 50° × 37.2° (H × V)
Min. Focusing Distance 0.2 m
Aperture F1.1
Optical Module
Max. Image Resolution 2688 × 1520
Image Sensor 1/2.7" Progressive Scan CMOS
Shutter Speed 1s to 1/100,000s
Lens (Focal Length) 4 mm
WDR 120 dB
Day & Night IR cut filter with auto switch
Image Function
Bi-spectrum Image Fusion Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture Combines details of thermal and optical image PIP, overlay thermal image on optical image
Smart Function
Temperature Range 30 °C to +45 °C
Temperature Accuracy ± 0.5 °C
Fire detection Dynamic fire point detection, up to 10 fire points detectable.
General
Working Temperature/Humidity -20 °C to 50 °C
95% or less
Protection Level IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimension 138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
Weight 940 g (2.07 lb)
